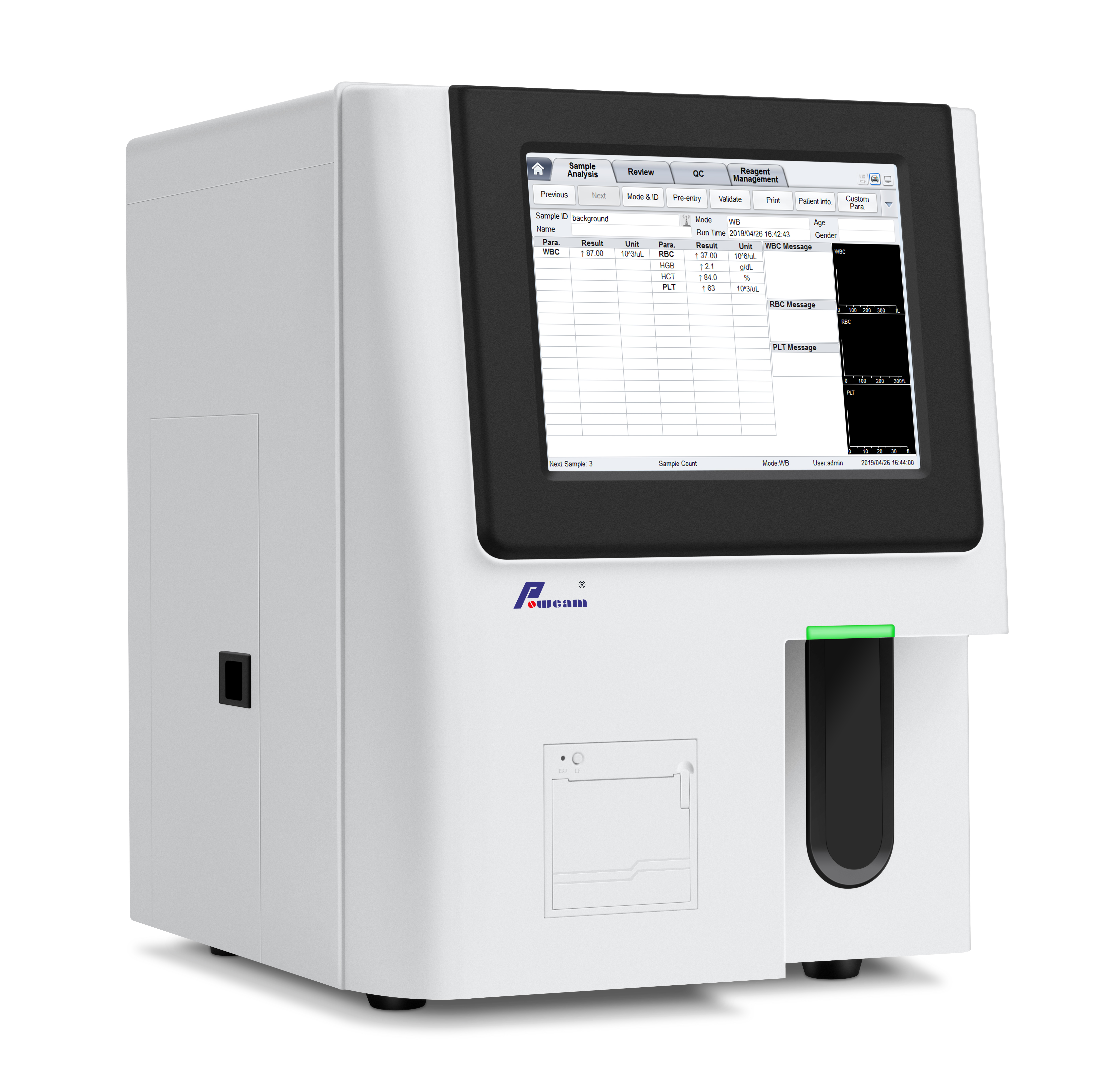

WHY6580
POWEAM
Features
- 10.4” TFT color touch screen
- 21 parameters, 3-parts differentiation
- Little 9 ul sampling volume
- 60 samples / hour
- Big storage up to 50,000 sample results, including parameter, histogram, and patient information
- Bi-directional LIS with LAN port,4USB port
- Venous whole blood, anticoagulant peripheral whole blood and pre-diluted blood
Technial Specifications (Principles)
- lmpedance method (WBC, RBC &PLT）and Cyanide free colorimetry (HGB)
21 Parameters+3 histograms
- WBC, RBC, HGB, HCT, MCHC, MCV, MCH, RDW-CV, RDW-SD, PLT, PDW, MPV, PCT, P-LCC, P-LCR, Lym%, Gran#, Mid#, Lym%, Gran%, Mid%, WBC/RBC/PLT histograms
Performance
Parameter | Linearity | Repeatability |
WBC | 0.00-300×109/L | ≤2.0% (7-15×109/L) ≤3.5% (4.00-6.90×109/L） |
RBC | 0.00-8.50×1012/L | ≤1.5% (3.5-6.50×1012/L) |
HGB | 0-250g/L | ≤1.5% (100-180g/L) |
PLT | 0-3000×109/L | ≤4.0% (150-500×109/L) ≤5.0% (100-149×109/L) |
HCT | 0.0-67% | |
MCV | ≤0.5%(70.0-110.0fL) |
Throughput
- Up to 60 samples per hour
Sample Volume
- Minimum volume 9 ul
Data Storage Capacity
- Up to 50,000 results including parameter, histogram, and patient information
Communication
- 4 USB ports and Bi-directional LIS connection
Operating Environment
- Temperature: 10oC-35oC
- Humidity: 15-85%
- Air Pressure: 70-106 kPa
Power Requirement
- A.C. 100-240V, 50/60Hz
Dimension and Weight
- 418mm(L) × 364mm(W) × 478mm(H)
- Weight: 25kg
