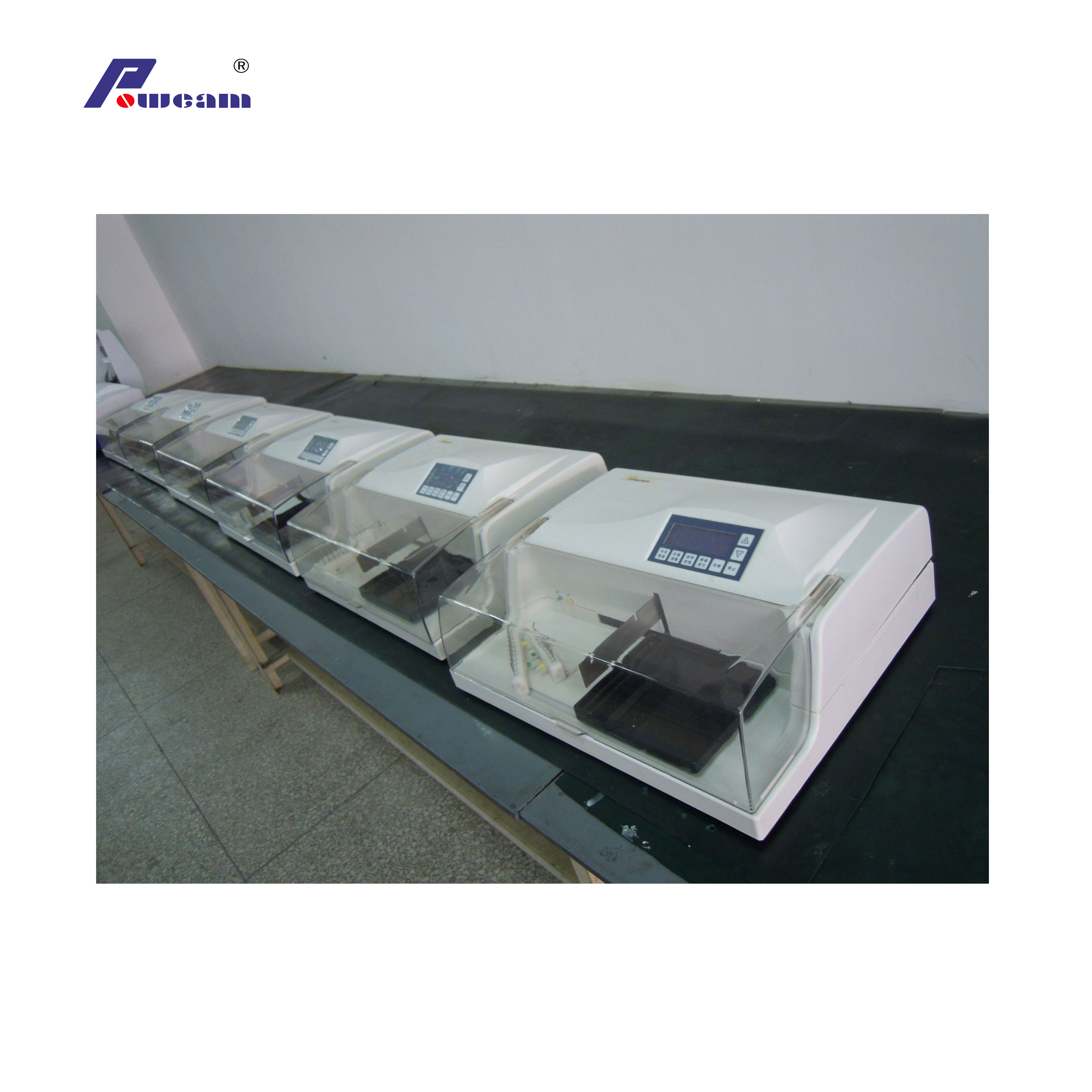

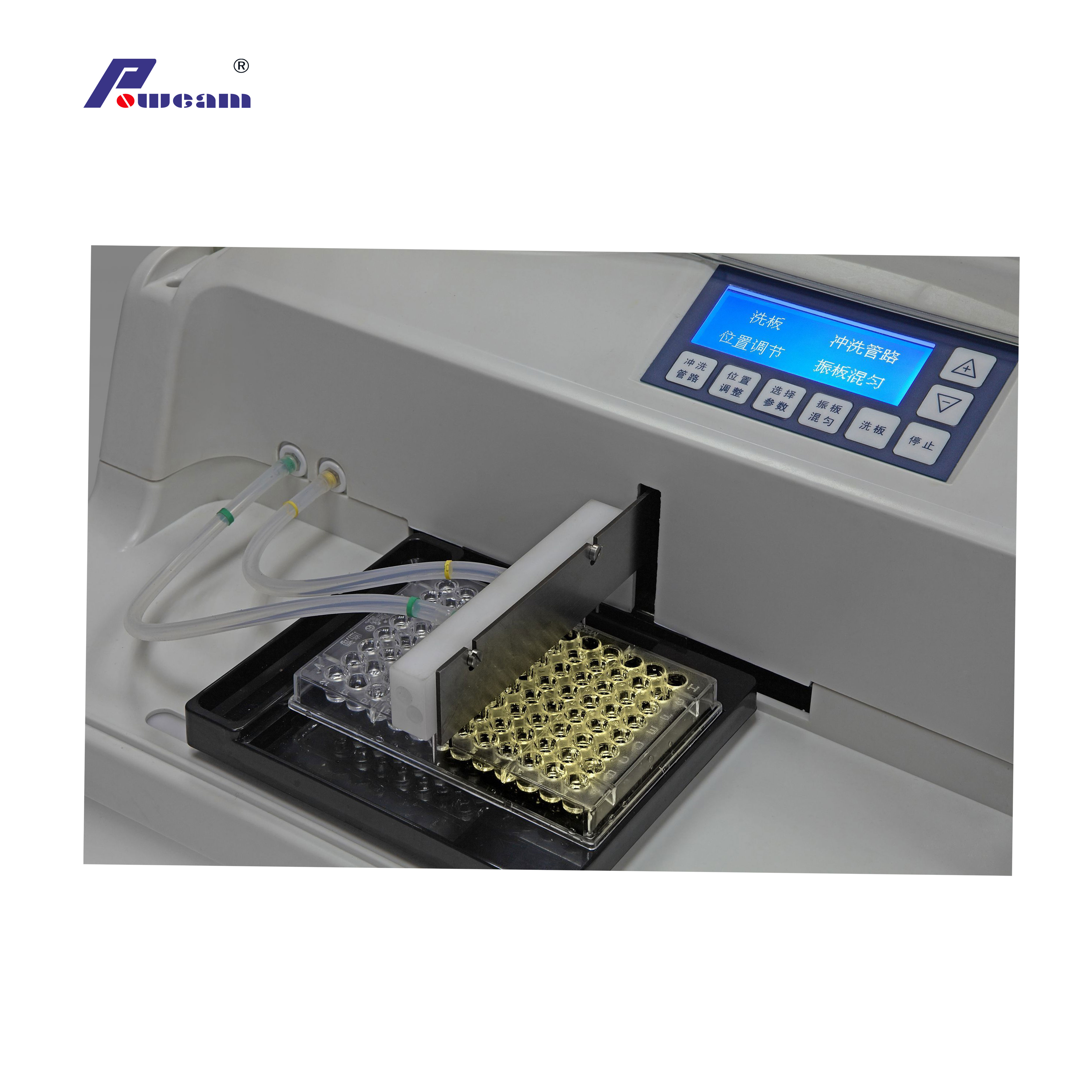

High Quality Touch Screen Elisa Microplate Washer

High Quality Touch Screen Elisa Microplate Washer

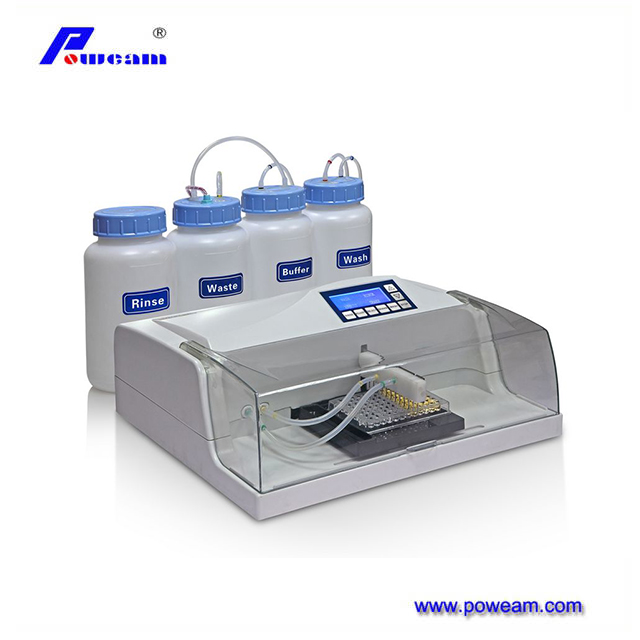

WHY100T Microplate Washer

Main Features

Large LCD display with intuitive, user-friendly menu interface

Supports both full microplate washing and single-strip washing

Supplied with interchangeable 8-channel and 12-channel washing manifolds

Dual-pipette design ensuring ultra-low residual volume

Complete bottom washing for thorough and consistent results

Integrated shaking and soaking (dipping) functions

Automatic monitoring of vacuum and pressure with built-in automatic rinsing cycle

Compatible with flat-bottom, V-bottom, and U-bottom microplates and strips

Large-capacity memory capable of storing up to 48 user-defined washing programs

Equipped with emergency stop function and liquid level alarm system

Technical Specification

Input:　8 key membrane keyboard

Display : High brightness LCD display screen

Manifold: 8 pins and 12 pins

Wash Mode: Strip mode and plate mode

Wash strips: 1~12 adjustable

Applicable well: Flat, V-bottom or U-bottom

Washing times: 0~99 times adjustable

Dipping time: 0~3600s adjustable

Shaking time: 0~600s adjustable

Residual volume:≤1μL/well

Liquid volume: 50~3000ul/well

Sipping time: 0.1~9.9s

Storage Capacity:More than 100 user defined wash board procedures

Power supply: 198~242V, 49~51Hz

Dimensions: 448(L)×382(W)×163(H)mm

Net weight: 8kg

Operating Environment :Temperature 5℃--40℃,Max humidity 80%
