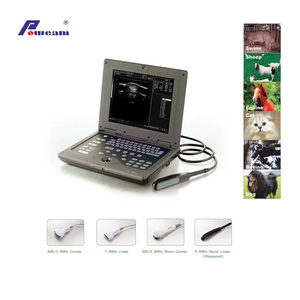

Medical Portable Ce ISO Full-Digital Laptop Veterinary Ultrasound Scanner

  • WHYB2018
  • Poweam
medical portable CE ISO Full-digital laptop veterinary ultrasound scanner ( WHYB2018)



FEATURES for Laptop Ultrasound Scanner

Full digital technology

Probe automatic identification

Ergonomic design, user-friendly

Wide clinical applications: abdominal, obstetrics, gynecology, pediatric, trans-vaginal, trans-rectal,
veterinary and so on

USB 2.0 for real-time picture uploading to PC

Human being or Veterinary software optional

Technical Specification of Ultrasound scanner:

Scanning: Convex, linear

Gray Scale: 256 levels

Display: 10.4" TFT color LCD

Display Mode: B,B+B,B+M,M,4B

Image Procession: DFS, DRF, RDA,VGA/DSC and image pre & post

Cine-memory: 206 frames (human),256 frames(vet)

32 image permanent storage

Multi-step Zoom (1:2) in both real-time and frozen modes

Focusing selectable

Depth adjustable in real-time of B and B+B mode
Image Conversion is U/D,L/R and B/W.
8 different coded-color on a external color monitor
15 different kinds of body marks
Measurement is in Distance ,Circumference/Area, Heart Rate,EF rate for   heart, and GS,CRL,
BPD,HC,FL,AC for OB/GY measurement, and Gestational Age, Fetal weight, EDD calculation.

Characteristic showing in real-time clock, ID, Sex, Age, Focusing info and Hospital Name

Standard configuration:  3.5MHz convex probe

                                       rechargeable battery

                                        AC adaptor

                                        Metal case

                                        USB dirve disk etc.

Optional accessories: 1) 7.5MHz linear probe

                                    2) 6.5MHz transvaginal probe

                                    3) 7.5MHz endorectal linear probe

                                    4) 5.0MHz micro-convex probe

                                    5) video printer





Probe35C50DN
35C60CN
convex array
75L40CN
HF linear
50C20BN
micro convex
65C10BN
endo-vaginal
Display depth (mm)240 (max)
Maximal detect depth (mm)≥190≥80≥90≥90
Resolution
(mm)
Lateral≤2
(depth≤80)
≤3
(80<depth≤130)
≤1
(depth≤60)
≤1
(depth≤40)
≤1
(depth≤40)
Axial≤1
(depth≤80)
≤0.5
(depth≤80)
≤0.5
(depth≤40)
≤0.5
(depth≤40)
Blind zone(mm)≤3≤3≤2≤2
Geometric position precisionHorizontal≤0≤3≤4≤2
Vertical≤3≤5≤2≤2
Monitor size10.1 Inch LCD, 16:9
Display modeB, B+B, B+M, B+M/M, M, 4B
Image gray scale256 Scale
Cine loop≥500 Frame
Image storage64 Frame
Scan angleAdjustable
Scan depth40mm-240mm
Image flipUp/down, left/right, black/ white
Image ProcessGAMA, Image Smoothen, THI, Pseudo color, Histogram
FocusFocus Number, Focus position, Focal space
MeasureDistance, circumference, area, volume, heart, GA, FW, EDD
Character displayDate, clock, name, PID, age, Sex, hospital name, doctor,
Notationfull-screen character editor, posture mark, Position indication
Output report4 types
USB portUSB2.0
power consumption (MAX)45VA
Net weight2kg
Size292mm×230mm×46.6mm
