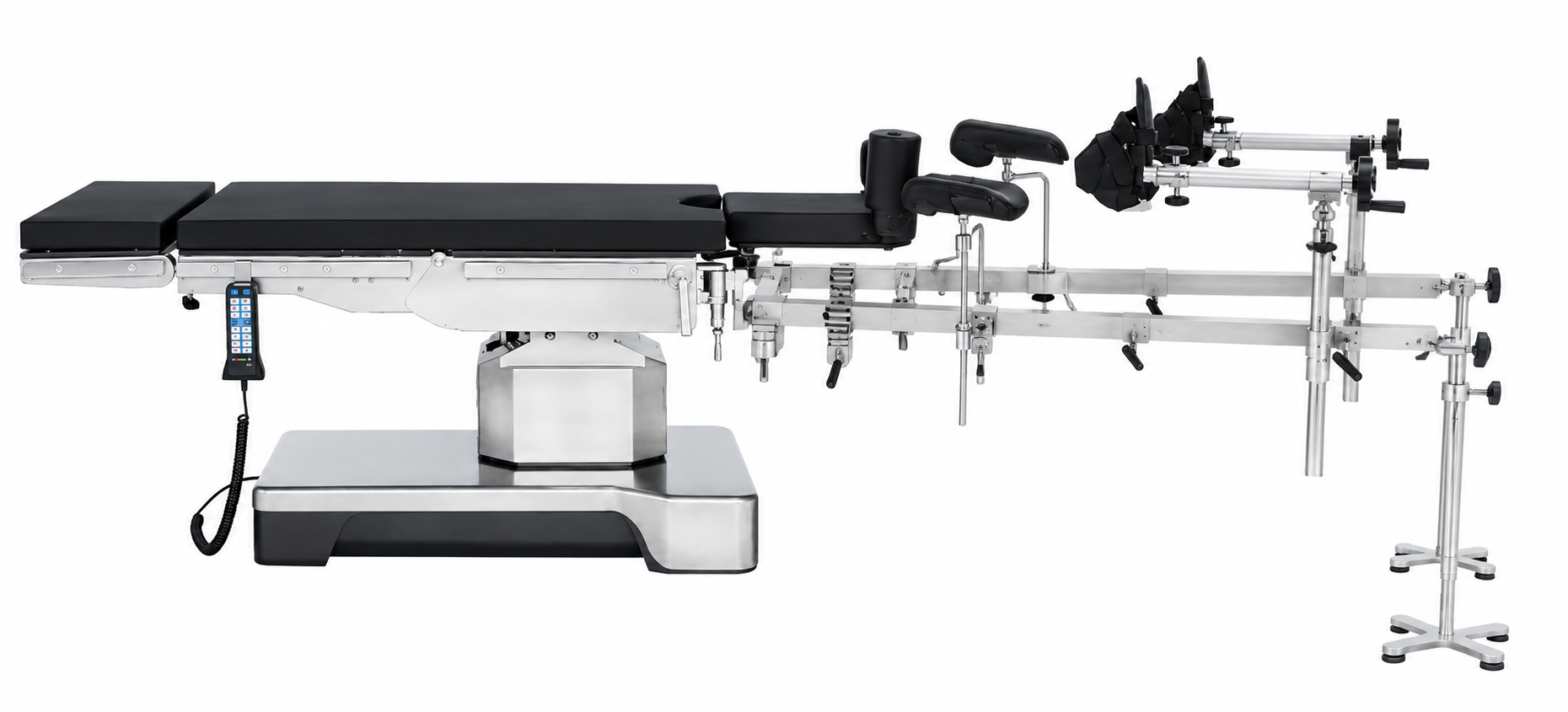

Multi-functional Electric Hydraulic Operating Table with C-Arm X-Ray Translucent Tabletop (HB104)
Operating Table Features:
adiolucent Tabletop: Made of high-quality carbon plastic board with longitudinal sliding for full-body C-arm imaging.
Seamless Mattress: High-density memory foam wrapped in premium artificial leather, seamlessly molded.
Dual Control System: Controlled via both a handheld remote control and column panel controls with automatic self-locking.
Hydraulic System: Powered by a German HOERBIGER hydraulic system.
Smart Positions: Supports CPU control with AC/DC power backup, one-key reset, and one-key "Flex" / "Reflex" (V-shape) positioning.
Durable Construction: Made of 304 stainless steel for side rails, support frames, base cover, and central column.
Ergonomic Design: Features an ultra-low height setting, electric floor-locking brake system, gas-spring assisted headboard/leg boards, and split/detachable leg sections.
| Model | HB104 | ||
| Length | 2000±100mm | Waist board lifting | 100±20mm |
| Width | 520±20mm | Leg board upwards | ≥20° |
| Height Adjustment | (650-1100) ±30mm | Leg board downwards | ≥90° |
| Tilt Left / Tilt Right | ≥20°/≥20° | Leg board Outwards | ≥180° |
| Trendelenburg / Rev-Trend | ≥30°/≥30° | Lumbar upper corner "^" | ≤150° |
| Headboard Upwards | ≥50° | Lumbar lower corner "V" | ≤110° |
| Headboard Downwards | ≥90° | Horizontal and longitudinal movement | 400±30mm |
| Backboard Upwards | ≥70° | Main Voltage AC | 220V±22V, 50±1Hz |
| Backboard Downwards | ≥40° | Input power VA | 400±10% |
