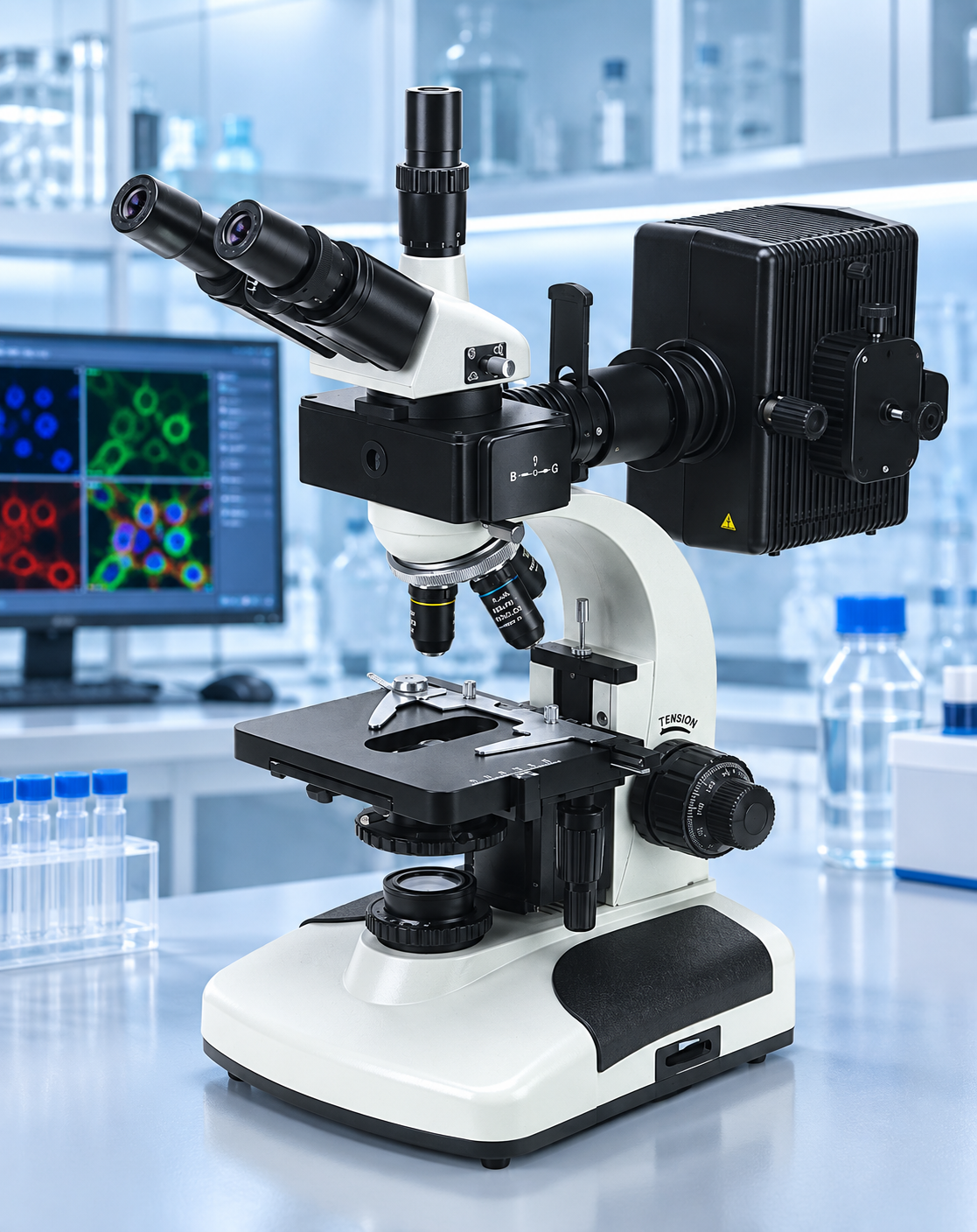

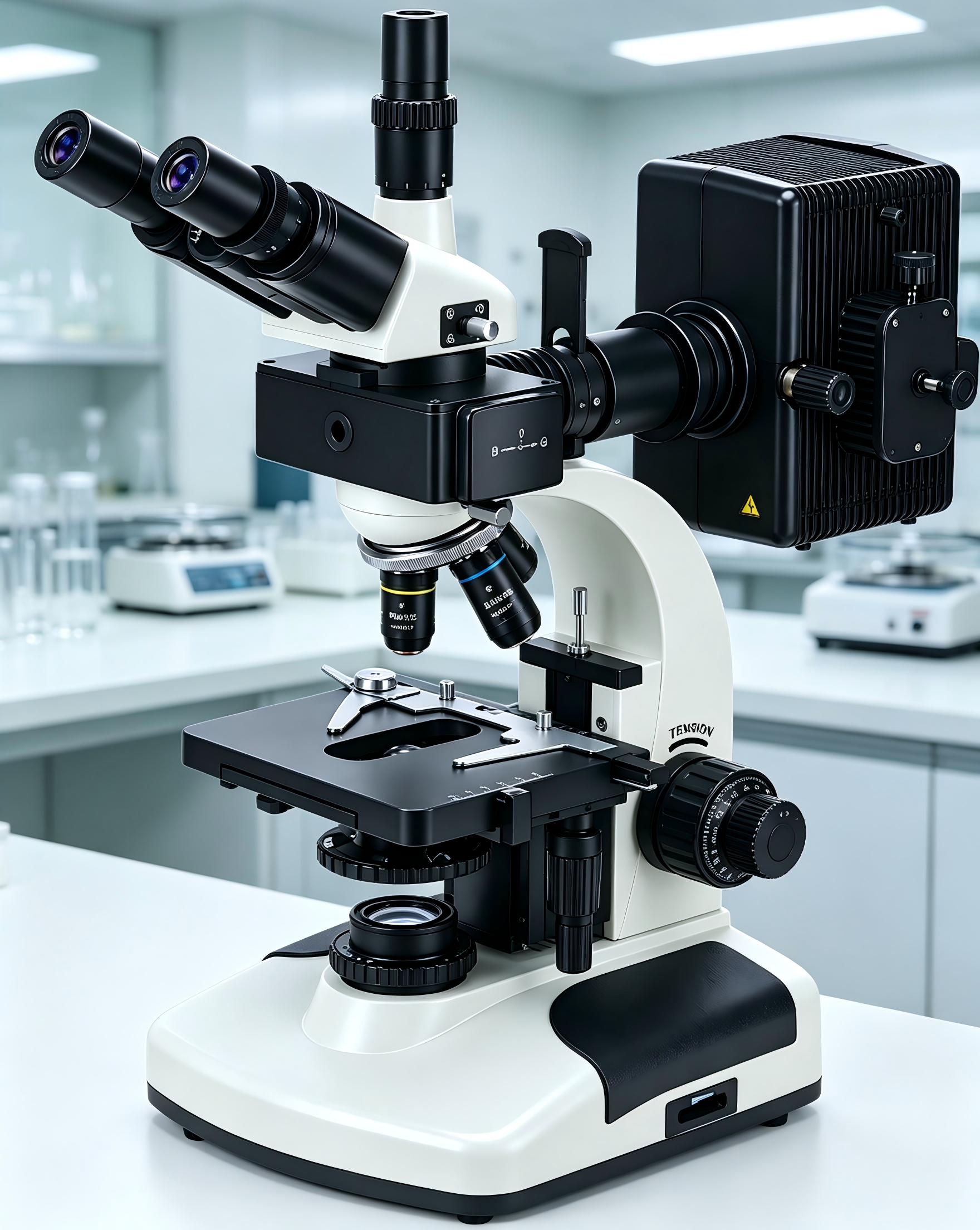

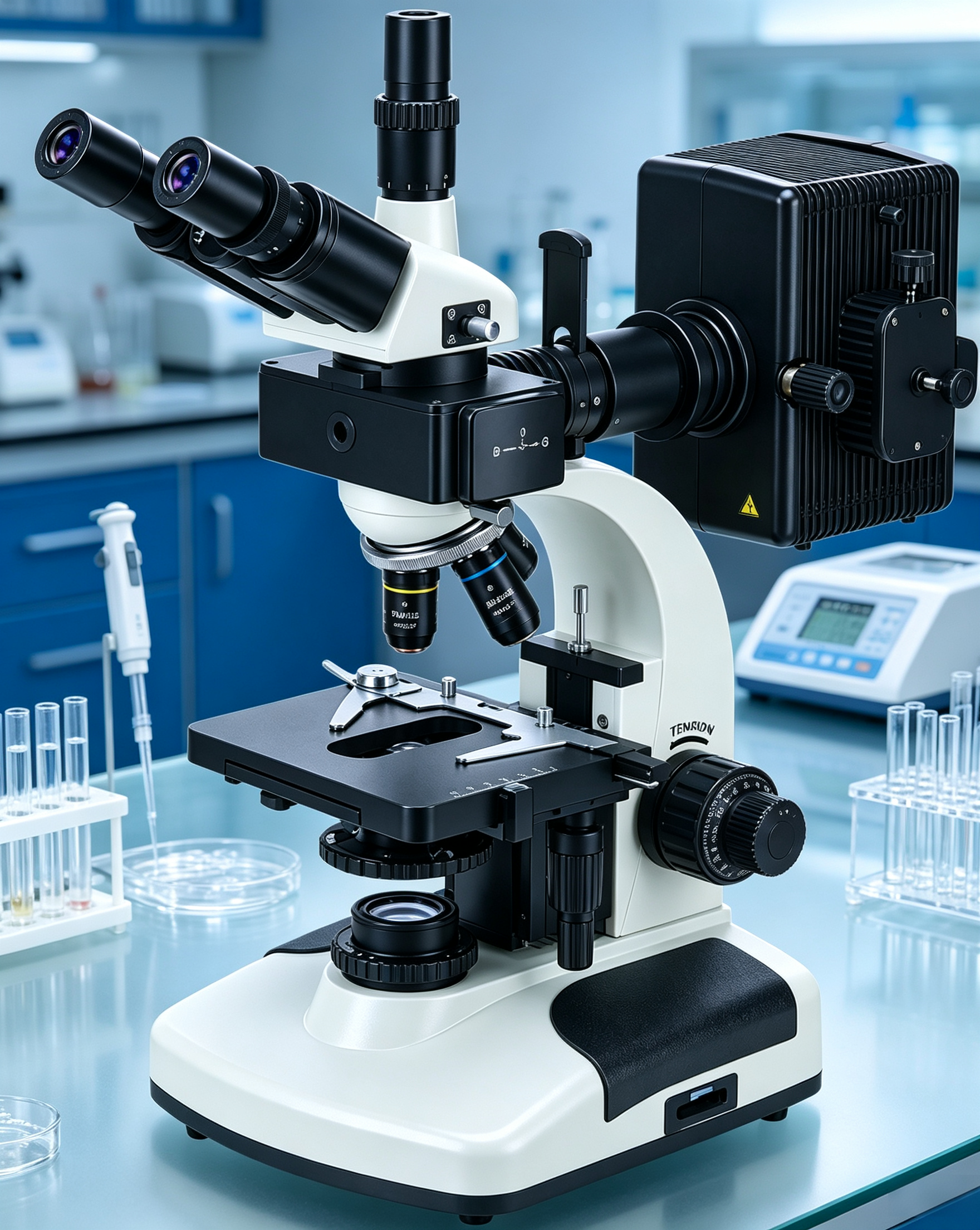

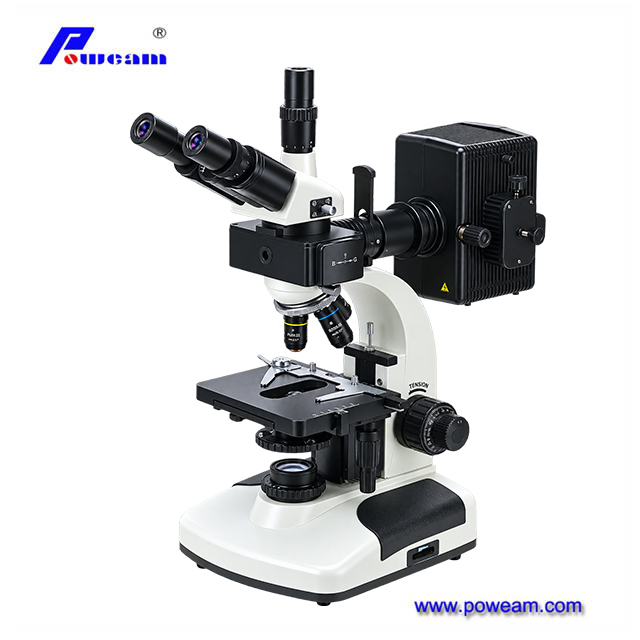

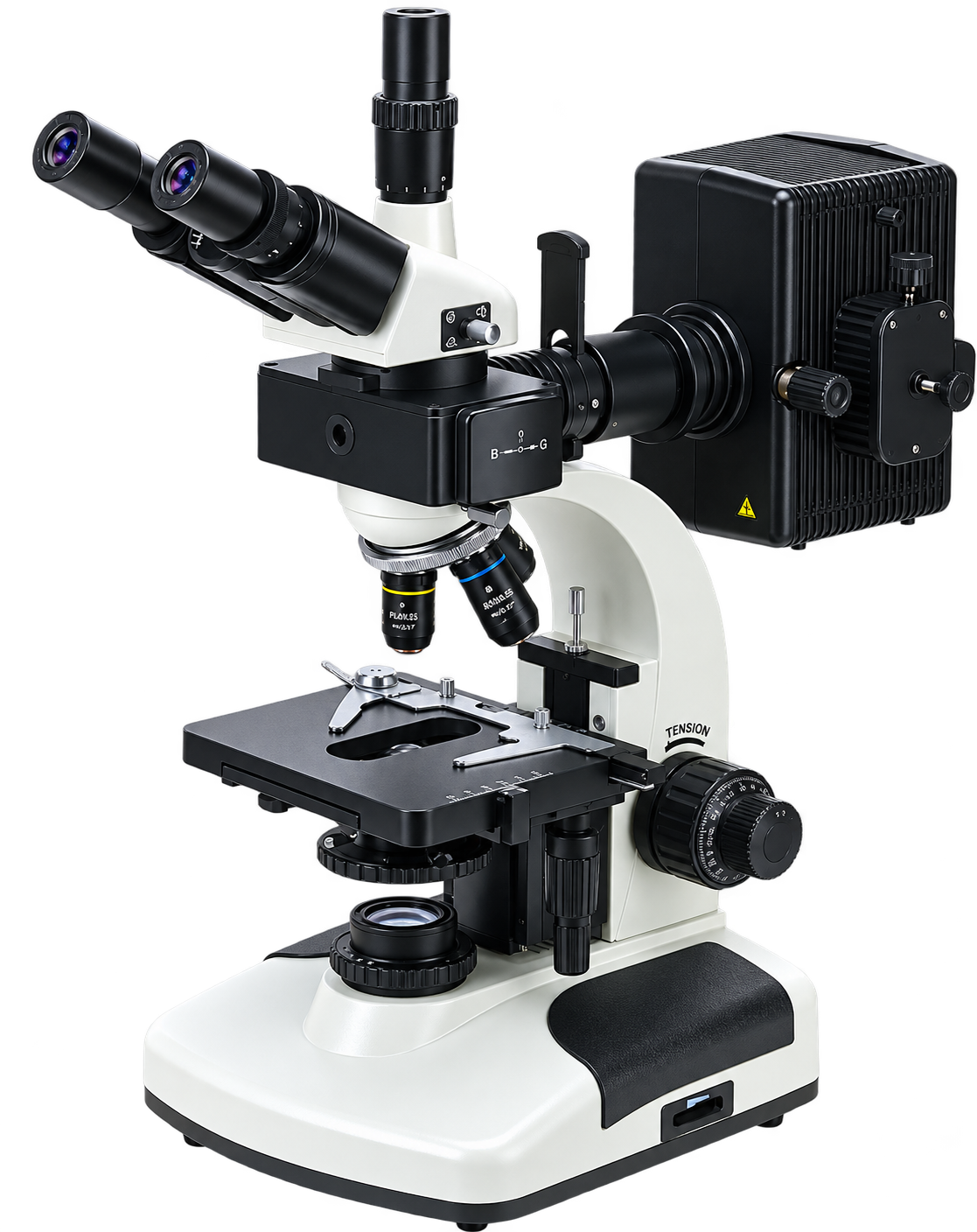

Professional Fluorescent Biological Binocular Microscope

Professional Fluorescent Biological Binocular Microscope, Binocular(LED)

• Product Type: LED Fluorescence Microscope / Epi-fluorescence Microscope

• Optical System: Achromatic Optical System for Fluorescence Imaging System

• Objective Lenses: Fluorescent Microscope Grade Achromatic Objectives: 4×, 10×, 40× (Spring-loaded), 100× (Spring-loaded, Oil Immersion)

• Eyepieces: Wide-Field Eyepieces WF10×/18 and WF16×/13

• Magnification Range: 40×–1600× (Optimized for Live Cell Imaging and Microbiology)

• Observation Head: Articulated Free Trinocular Viewing Head (for Fluorescent Microscope Camera Attachment), 30° Inclined and 360° Rotatable; Upright Binocular Head Available as an Alternative

• Interpupillary Adjustment: 55–75 mm

• Vertical Tube Adjustment: 10 mm

• Stage: Double-Layer Mechanical Stage, 140 × 155 mm

• X-Y Stage Travel: 70 × 50 mm

• Condenser: Abbe Condenser, N.A. 1.25

• Iris Diaphragm Aperture: Ø2–Ø30 mm

• Focusing System: Coaxial Coarse and Fine Focusing Mechanism, 30 mm Focusing Travel

• Fine Focus Accuracy: 0.002 mm (Ideal for High-Resolution Fluorescence Microscopy)

• Fluorescence Microscope Filter Cubes:

• Blue Fluorescence Filter (B): Excitation Wavelength 450–490 nm (Standard for FITC / GFP Fluorescence Microscope applications)

• Green Fluorescence Filter (G): Excitation Wavelength 510–570 nm (Standard for TRITC / PI applications)

• Optional Filter Cubes: DAPI Filters available upon request for Immunofluorescence Microscope assays.
