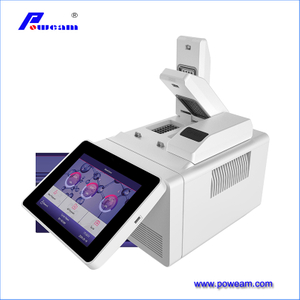

WHYA30 Fast Touch Screen Thermal Cycler

  • WHYA30
  • Poweam

Specification

◊ Display 7" Color Touch Screen, graphical display of protocols and running status
◊ Communications USB2.0, LAN and RS232
◊ Block Temperature Range 0°C-100°C
◊ Max. Heating/Cooling Rate 6°C/s
◊ Temperature Uniformity ≤ ± 0.2°C  (at 95°C)
◊ Temperature Accuracy ≤ ± 0.2°C  (35°C-100°C)
◊ Mode of Temperature Control SIM-tube & Block mode
◊ Gradient Accuracy ≤ ± 0.3°C (35°C-100°C)
◊ Column Uniformity ≤ ± 0.3°C (at 95°C)
◊ Gradient Range 30°C-99.9°C
◊ Temp. Differential Range Max. 30°C
◊ Gradient Capability 12 Column (Vertical)
◊ Heated Lid Temperature Range 30°C-105°C
◊ Max. Step 30 Steps, multiple nesting cycle available
◊ Max. Cycle 100 typical cycles (duplex nesting 60, 000 cycles)

◊ Max. Number of programs Max. 15, 000 programs onboard, unlimited storage of protocols with USB flash drive
◊ PC Connection PC remote control to manage more than 120 units of A30 across the network


Optional Module:
◊ 96 Module: 96wells*0.2ml                              ◊ 9677 Module: 96wells*0.2ml+77wells*0.5ml
◊ 48 Module: 48wells*0.2ml+48wells*0.5ml      ◊ 108 Module: 108wells*0.2ml+88wells*0.5ml
◊ Multi-purpose: 9677 Module + In-situ Adapter
