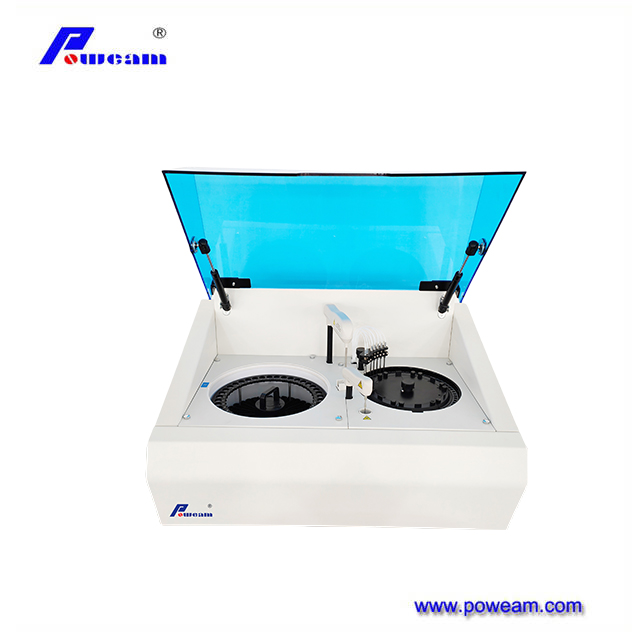

Auto Chemistry Analyzer B6 for Hospital

Auto Chemistry Analyzer B6 for Hospital

Specifications of  Auto Chemistry Analyzer B6

Instrument Performance

• Principle: Photoelectric Colorimetry

• End - Point & Assay Method: Kinetic, Two - Point, etc.

• Throughput: A constant rate of 200 tests per hour (200T/H)

• STAT Function: Designated emergency positions

Reagent System

• Reagent Disk: 40 reagent positions, compatible with various bottle types

• Cooling System: A 24 - hour non - stop cooling system maintaining a temperature of 2 - 8°C

• Reagent Probe: Highly polished probe with automatic liquid level detection and tracking, and collision protection features

Reaction System

• Reaction Cuvette: 60 reusable reaction cuvettes

• Washing System: 8 - step warm water washing mechanism

• Minimum Reaction Volume: 180 microliters (μL)

• Heating System: Maintains a temperature of 37 ± 0.1°C

Sample System

• Sample Disk: 40 sample positions, including standard, quality control (QC), and STAT positions

• Sample Probe: Highly polished probe with automatic liquid level detection and tracking, collision protection, and a dispensing range of 2 - 50 μL with 0.1 μL increments

Optical System

• Light Source: Long - life halogen - tungsten lamp, 12 volts (V), 20 watts (W)

• Photometry Range: 0 - 4.0 absorbance units (Abs)

• Wavelength: 9 wavelengths (ranging from 300 nanometers (nm) to 700 nm)

Dimension and Weight

• Dimension: 860 mm (length) x 590 mm (width) x 570 mm (height)

• Gross Weight: 50 kilograms (KG)

• Net Weight: 33 kilograms (KG)

• Water Consumption: Less than 3 liters per hour (<3L/H)
