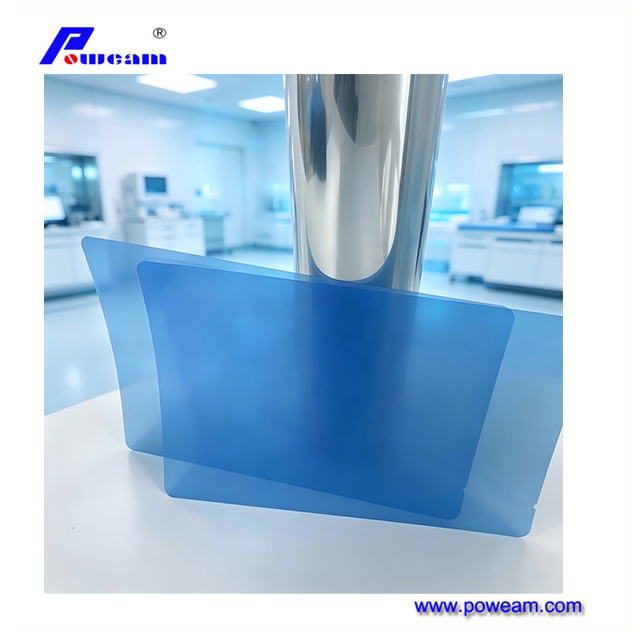

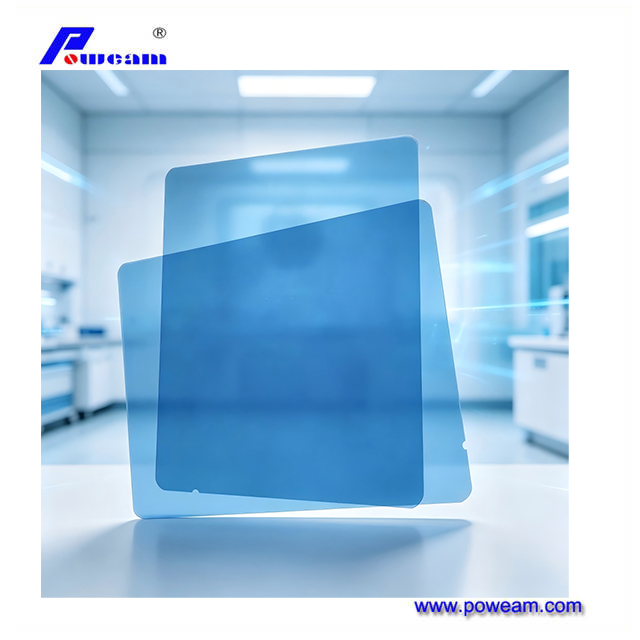

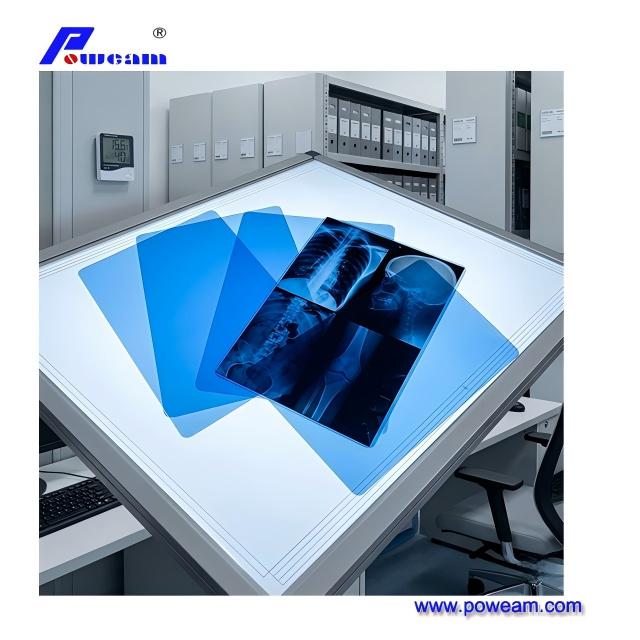

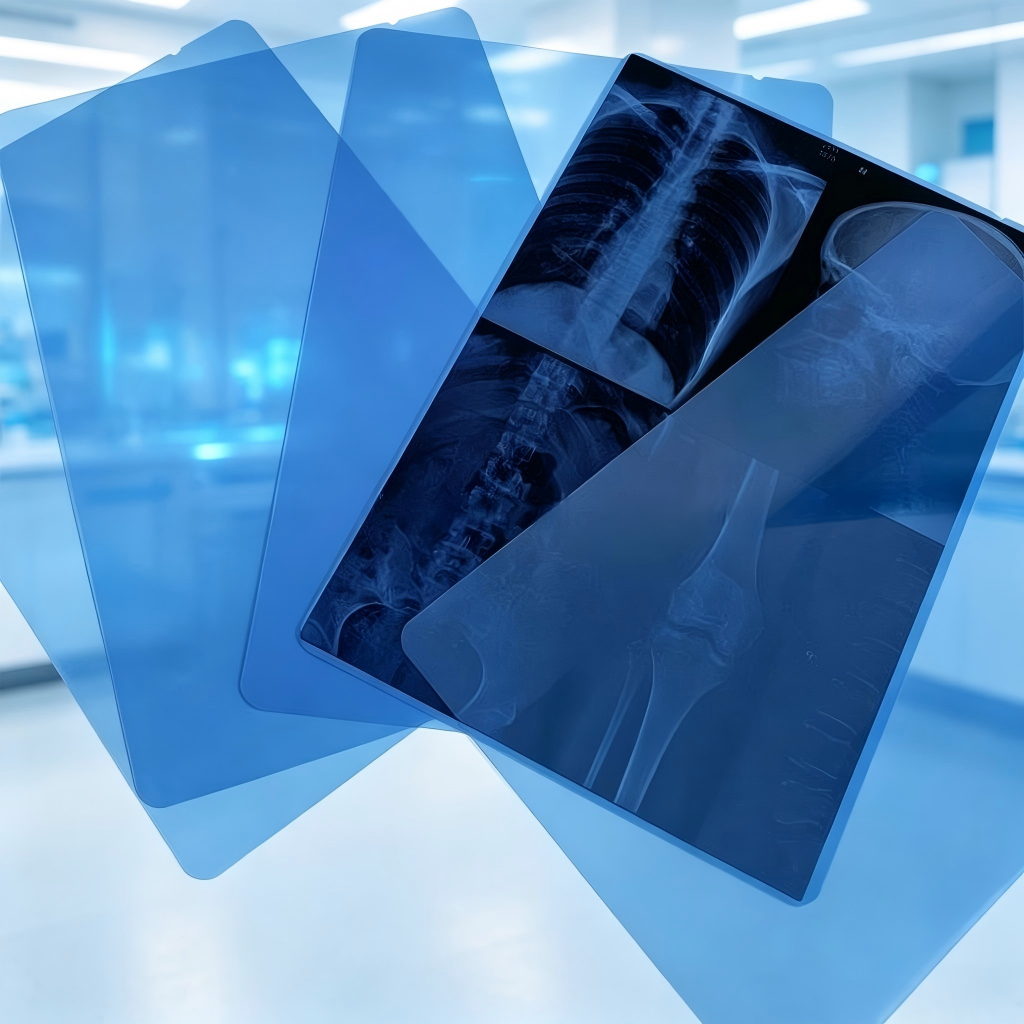

Dry Process X-ray Film for High-Definition Medical Diagnostics
Technical Specifications for Dry Process X-ray Film：
| Parameter | Specifications & Standards | Clinical Significance |
|---|---|---|
| Film Base Material | High-strength Blue Polyester (PET) Film | Provides structural stability and optimal viewing tint. |
| Coating Structure | Double-sided (Imaging Layer & Protective Layer) | Ensures scratch resistance and precise thermal imaging. |
| Optical Characteristics | Low fog, high definition, high maximum density (\(D_{max}\)), bright tone | Delivers crisp image contrast and sharp detail for accurate diagnosis. |
| Printer Compatibility | Optimized for Kenid & Fuji thermal imagers | Broad hardware support across standard medical markets. |
| Shelf Life / Validity | 24 Months (under specified storage conditions) | Ensures long-term material stability and inventory flexibility. |
Core Application: Specifically engineered for outputting digital medical images from CT, MRI, DR, CR, and digital ultrasound workflows.
Universal Usability: Features low fogging and exceptionally bright tones. It is directly compatible with major market-leading imager brands such as Fuji.
Testing Requirement: While optimized for Kenid and Fuji printers, pre-testing is required on other printer brands before mass deployment to determine the optimal density and grayscale settings.
Temperature & Humidity: Maintain a temperature between 10°C to 23°C and relative humidity (RH) between 30% to 65%. Keep well away from any heat sources.
Atmospheric Quality: The storage facility must be entirely free from corrosive or acid-alkaline vapors, including Hydrogen Sulfide (\(H_{2}S\)), Ammonia (\(NH_{3}\)), Sulfur Dioxide (\(SO_{2}\)), and Formaldehyde (\(CH_{2}O\)).
Physical Stacking: Store boxes vertically (upright) to prevent adverse surface pressure or pressure-induced artifacts.
Temperature: 18°C to 24°C
Relative Humidity: 50% to 65% RH
Temperature Acclimatization: If the film was stored in a low-temperature room, you must keep it in its original sealed package for at least 4 hours at room temperature before opening. This prevents condensation from forming on the film surface, which can cause severe imaging defects or damage the printer's thermal head.
Physical Handling: Do not bend, fold, squeeze, or friction-rub the film sheets. Handle with clean, dry hands only. Avoid touching the active surface to prevent skin oils, static traces, or physical artifacts.
Disposal: Waste film and discarded sheets must be disposed of safely in strict accordance with local environmental protection laws and public regulations.
