DR65800
POWEAM

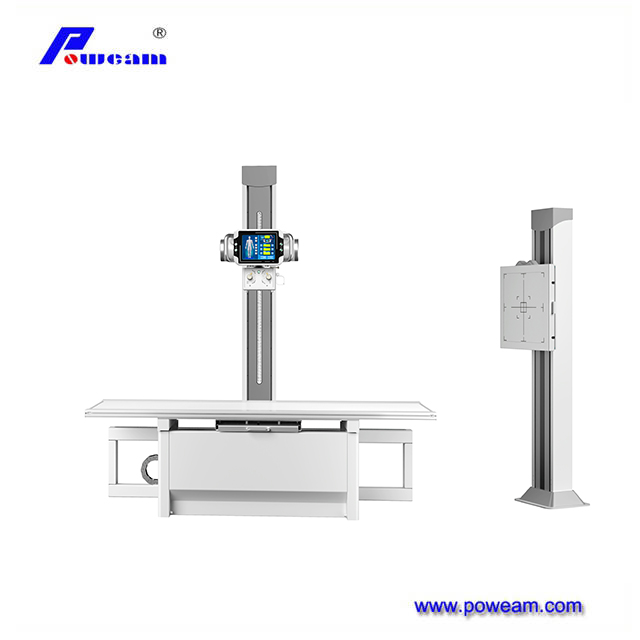

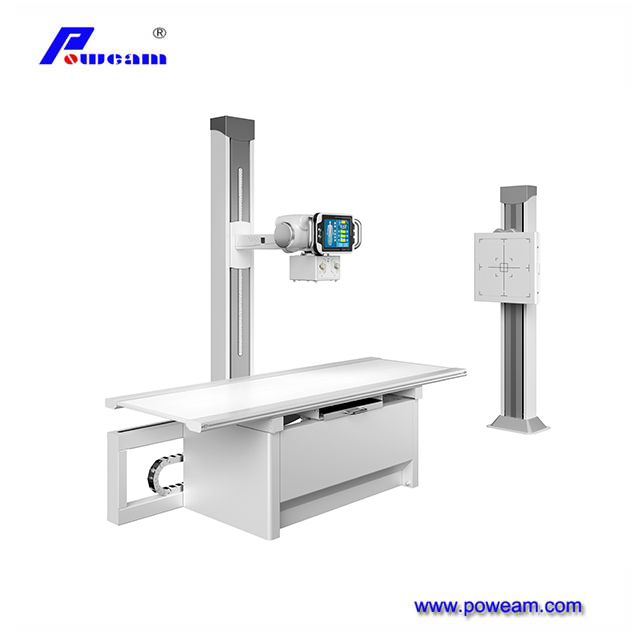

Freestanding Floor Mounted DR System Digital Radiography Equipment with Flat Panel Detector And Bucky Stand
Product Overview
1. High-Power HF X-Ray Generator: 65kW output power with 40~150kV / 10~800mA range for obese patients.

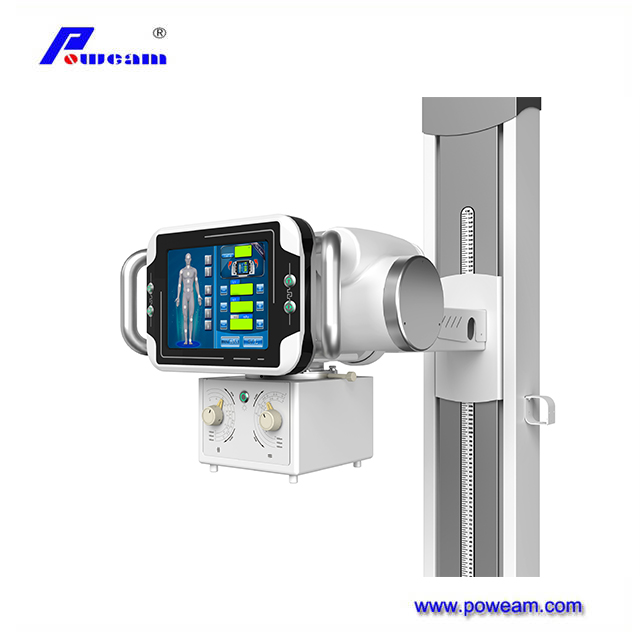

2. Premium X-Ray Tube: High-speed dual-focus anode tube (0.6/1.2mm) operating up to 9700 r/min.
3. Large Format Flat Panel Detector: 17x17 inch wired CsI (Cesium Iodide) scintillator with 3328*3328 pixels.
4. Heavy-Duty Radiographic Table: Spacious table top (2100x800x650mm) with large 18x18 inch Bucky size.

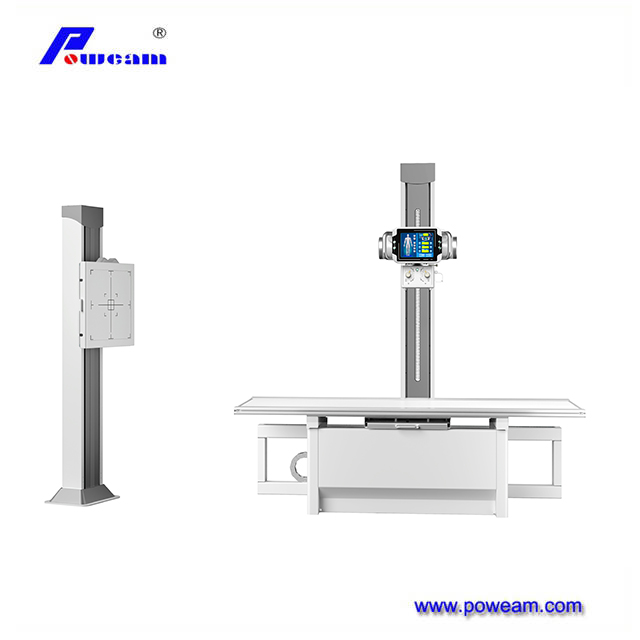

5. Advanced 4-Way Floating Table: Integrated with infrared photoelectric switch for smooth, precise patient positioning.

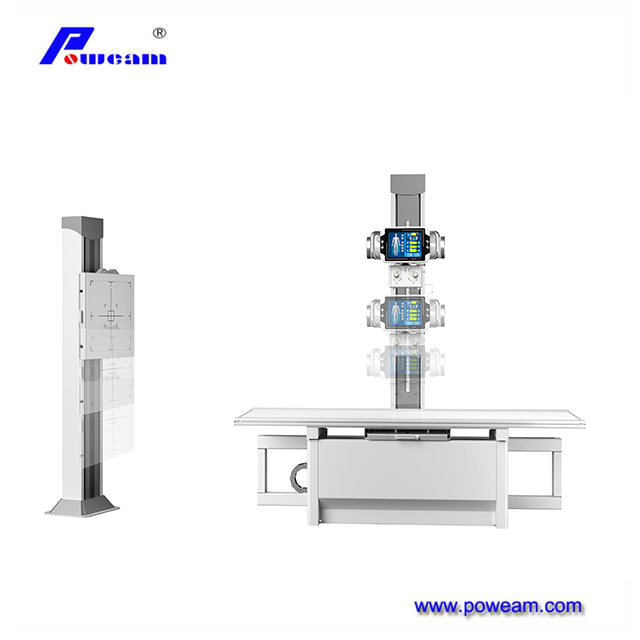

6. Ergonomic Vertical Chest Stand: Long vertical moving range ≥1200mm with an 18x18 inch Bucky mechanism.
7. Smart Control & Automation: Auto tube current calibration, filament sleep function, and optional AEC support.
8. Clinical Versatility: Ideal for diagnostic imaging of head, limbs, chest, spine, and lumbar spine.
9. Professional Acquisition Software: Full DICOM 3.0, RIS, and PACS connectivity with multi-language support.
10. Premium Medical Workstation: Equipped with high-capacity 1TB storage, ≥4GB RAM, and a 23-inch medical-grade LCD monitor.
| Main Component | Technical Specification | Parameter Value |
| X-ray Generator | Output Power | 65KW |
| (includes console) | Power Voltage | 380V ± 38V |
| kV range | 40 ~ 150kV | |
| mA range | 10 ~ 800mA | |
| mAs range | 0.1 ~ 630mAs | |
| Loading time | 2 ~ 10000mS | |
| X-ray Tube | Small focus | 0.6 |
| Large focus | 1.2 | |
| Anode speed | 9700 r/min | |
| Collimator | Inherent filtration | 1.0mm Al / 75kV |
| Light Source | LED | |
| Radiographic Table | Top Table Size | 2100 x 800 x 650mm |
| Bucky Size | 18 x 18 inch | |
| Table longitudinal movement | ≥ 900mm | |
| Cassette Movement Distance | ≥ 500mm | |
| Vertical Chest Stand | Vertical moving range | ≥ 1200mm |
| Bucky Size | 18 x 18 inch | |
| Wired Flat Panel Detector | Size | 17 x 17 inch |
| Scintillator | CsI (Cesium Iodide) | |
| Pixels | 3328 * 3328 | |
| Resolution | 3.9 | |
| AD Conversion | 16 bit | |
| Computer & LCD | CPU | ≥ 2.8GHz |
| Memory | ≥ 4GB | |
| Disk Capacity | ≥ 1TB | |
| Medical LCD | 23 inch |
