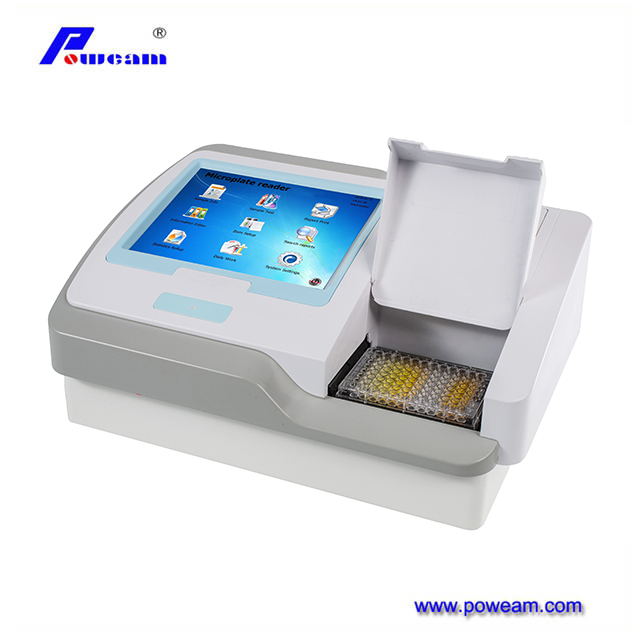

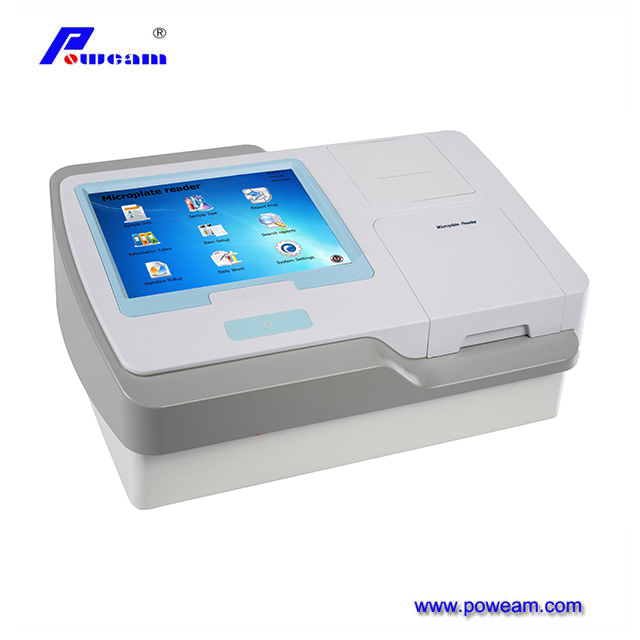

WHY101ST Microplate Reader
Main Features
* Touch screen with 10.4”color LED display, resolution 1024*600
* Large Intelligent operation interface, easy connect to PC
* Flexible Plate layout with Blanks, Standards, Samples, Reference, QC in one screen
* Comprehensive qualitative and quantitative data-evaluation functions with cut-offs, curve-fits and transformation formulas
* More than 20 different report formats
* Auto Lamp adjustment and auto calibration
* Support keyboard and mouse with USB interfaces
* Stable memory stores up to twenty million test data, 500 test projects
Parameter | data |
Microplate types | 96/48-well plate |
Photodetector | Silicon Photodiode |
Light source | 8v/50w Controlled tungsten halogen lamp |
Wavelength range | 400nm~850nm |
Standard filters | 405,450,492,630nm & 4 optional |
Reading range | 0.000~4.000A |
Resolution | 0.001A |
Accuracy | ±0.008A |
Reproducibility | ≤0.2% |
Stability | ±0.003A |
Reading Speed | Single Wavelength≤3s ;Double Wavelength≤6s |
Shaking | Linear Shaking, 3 speeds |
Printer | Built-in Thermal Printer, optional external printer |
Interface connections | DVI, VGA, NETWORK INTERFACE, USB, AUDIO INTERFACE, RS-232 |
Power supply | 100~240V, 50~60Hz |
Dimensions | 460(L)×350(W)×197(H)mm |
Net weight | 8kg |
