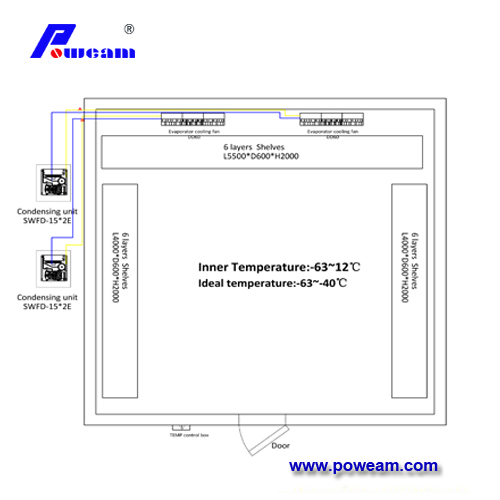

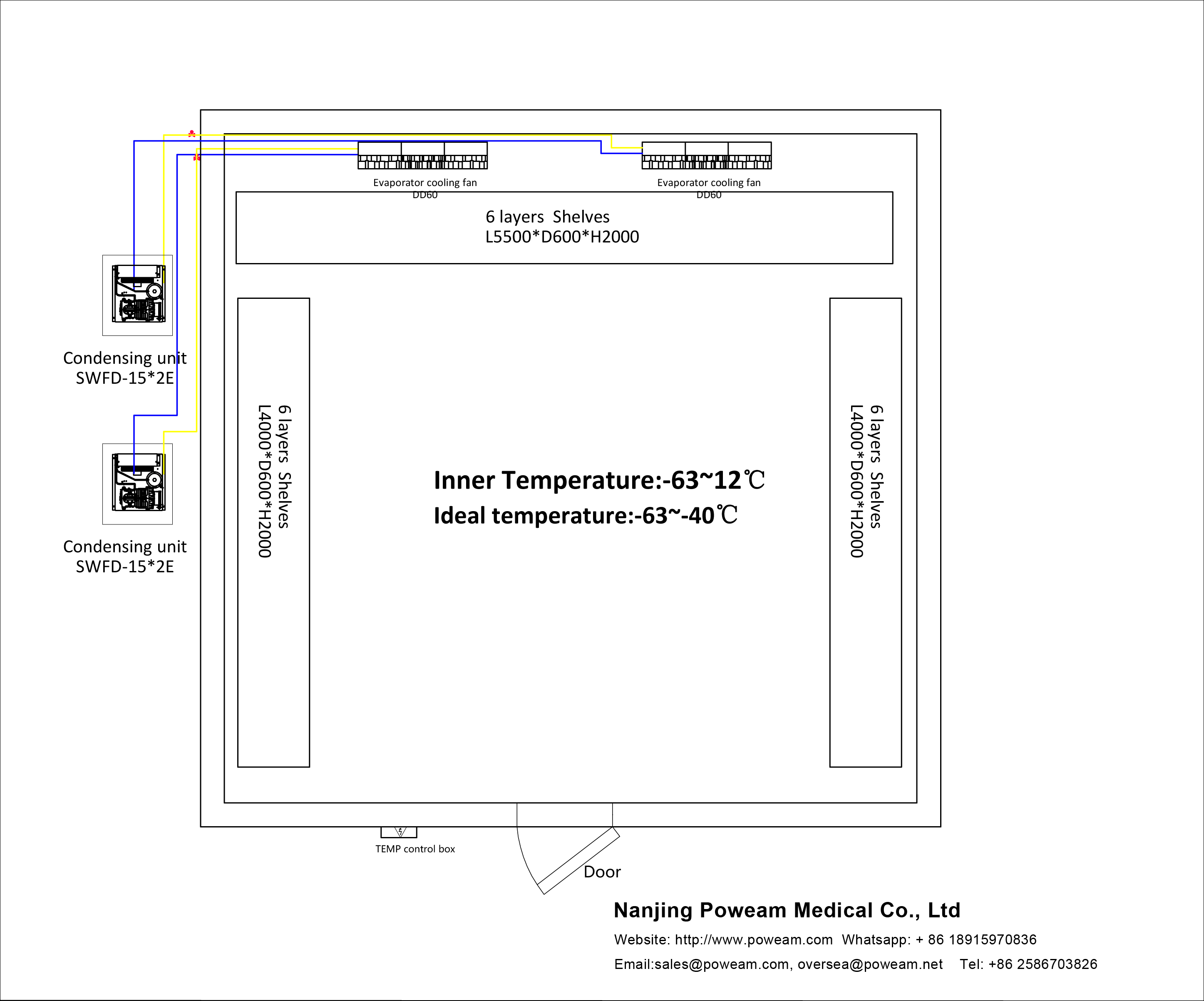

Negative Cold room

●Negative with floor

●Temperature range: adjustable from -63°C to +12°C

●Ideal Temperature range:-63°C to -40°C

●External dimensions: 6000×6200×3000 mm (L×W×H)

●Insulation: 200 mm panels; U-value up to 0.23 W/m²

●Hinged door with right-hand hinge, lockable, centered on the width

●Floor capable of supporting a trolley of at least 1000 kg

●Equipped with strip curtains

●Winter kit: yes

●U-shaped shelving (covering 3 full sides)

●Shelf depth: 500 mm

●Shelf height: 2 m (minimum 6 levels)

●Required lighting: LED

●Two (02) semi-industrial negative monoblock units, alternating automatically, saddle-type, with their evaporators:

· Pre-charged with refrigerant

· Hermetic compressor

· Expansion via thermostatic expansion valve

· Liquid receiver with safety valve

· Liquid sight glass

· High and low pressure control via pressure switch

· Automatic defrost by hot gas return

· Multifunction electronic control with remote monitoring

· Condensation control via pressure switch

· Overvoltage protector

· Magnetic-thermal protection

· Dirty condenser alert

· Capable of cooling 50–150 m³

· Power supply: 400 VAC – 50 Hz

· Power: 5.5–7 kW

● Cold room control cabinet:

· With adjustable temperature range setting

· Manual and automatic unit selector

· Remote control

· Audible and visual alarm
